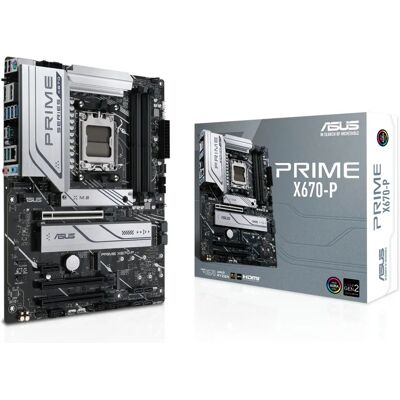

Name: ASUS PRIME X670-P AMD X670 Socket AM5 ATX Motherboard
Brand: ASUS

ASUS PRIME X670-P AMD X670 Socket AM5 ATX Motherboard delivers a modern AM5 platform built for next-gen AMD processors and high-speed DDR5 memory.

This ASUS PRIME X670-P motherboard supports AMD processors with Socket AM5 and the AMD X670 chipset, providing a robust foundation for gaming, content creation, and workstation builds. The board is compatible with Windows 10 x64 and Windows 11 x64 and includes UEFI AMI BIOS with 256 Mbit memory for easy setup and firmware management.

Memory support is a key highlight: four DIMM slots with dual-channel DDR5 support and ECC & Non-ECC compatibility allow up to 128 GB of unbuffered memory at speeds from 4800 MHz up to 6400 MHz. This makes the board ideal for heavy multitasking and memory-intensive workflows.

Storage and expansion are extensive with three M.2 slots and six SATA III connectors, plus RAID 0/1/10 support for flexible and resilient storage configurations. PCIe expansion includes three PCIe x16 (Gen 4) slots and one PCIe x1 (Gen 3) slot for GPUs, capture cards, and other add-in cards.

Connectivity covers modern needs: one HDMI 2.1 and one DisplayPort 1.4 provide up to 7680 x 4320 resolution support for high-resolution displays, while robust I/O includes USB 3.2 Gen 2 (3 Type-A), USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1 ports, USB 2.0, PS/2 and a 2.5 Gb Ethernet port. There is no onboard Wi-Fi, but Thunderbolt header support and comprehensive front-panel headers make integration straightforward.

Audio and cooling features include 7.1-channel audio output, multiple fan connectors (CPU fan plus three chassis fan headers), an RGB LED header, and extensive ASUS software such as Armoury Crate, Aura Sync, Fan Xpert 4 with AI Cooling II, and AI Suite 3 for system tuning, monitoring, and personalization.

Typical use cases include high-performance gaming rigs with multi-GPU or fast NVMe storage, content creation workstations needing large fast memory and multiple M.2 drives, or a reliable workstation with RAID-protected storage. The package includes SATA cables, I/O shield, M.2 screws and rubber spacer, and a user guide to simplify installation.
