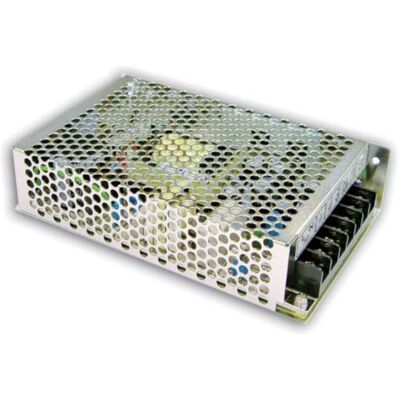

MEAN WELL RS-100-48 Power Supply - 110W, 48V, Metal
- 110.4 W power output •
- 48 V DC output voltage •
- Adjustable voltage range: 45.6-52.8 V •
- Efficiency: 84% •
- More features
Offers updated on: 3/7/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the MEAN WELL RS-100-48 Power Supply, a robust power solution that delivers reliable performance for various applications. With its impressive 110W output and durable metallic design, this power supply is built to withstand the rigors of industrial use.
Key features of the MEAN WELL RS-100-48 include:
- Total Power: 110.4 W
- AC Input Voltage: 88 - 264 V
- AC Input Frequency: 47 - 63 Hz
- Input Current: 2.5 A
- Hold Time: 100 ms
- Efficiency: 84%
- Power Protection: Over voltage, Overload, Short circuit
- MTBF: 260800 h
- Operating Temperature: -25 - 70 °C
- Storage Temperature: -40 - 85 °C
- Humidity Range: Operating 20 - 90%, Storage 10 - 95%
- Safety Certifications: UL60950-1, TUV EN60950-1 approved
Measuring just 97 mm in width, 159 mm in depth, and 38 mm in height, and weighing 600 g, the MEAN WELL RS-100-48 is compact yet powerful. It features LED indicators for easy monitoring and a quick rise time of 20 ms, making it suitable for demanding environments.
Whether you're powering sensitive electronic equipment or require a dependable supply for your industrial machinery, this power supply unit offers peace of mind with its superior performance and safety features. Upgrade your power capabilities with the MEAN WELL RS-100-48 today!
Features
Power
- Total power:110.4 W
- AC input voltage:88 - 264 V
- AC input frequency:47 - 63 Hz
- Input current:2.5 A
- Hold time:100 ms
- Efficiency:84%
- Power protection features:Over voltage, Overload, Short circuit
Performance
- Mean time between failures (MTBF):260800 h
Design
- Product colour:Metallic
- LED indicators:Yes
Operational conditions
- Operating temperature (T-T):-25 - 70 °C
- Storage temperature (T-T):-40 - 85 °C
- Operating relative humidity (H-H):20 - 90%
- Storage relative humidity (H-H):10 - 95%
Safety regulation & standards
- Safety:UL60950-1, TUV EN60950-1 approved
Weight & dimensions
- Width:97 mm
- Depth:159 mm
- Height:38 mm
- Weight:600 g
Other features
- Rise time:20 ms
