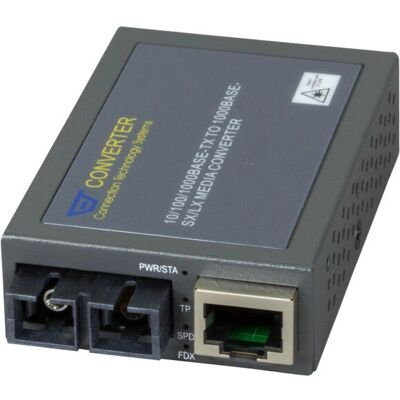

EFB Elektronik MCT-3002BTFC-SM10 Network Converter - Grey
- Gigabit Ethernet •
- 1000 Mbit/s speed •
- Single-mode fiber •
- RJ45 and SC ports •
- More features
Offers updated on: 1/10/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
International prices
Description
The EFB Elektronik MCT-3002BTFC-SM10 Network Converter is a cutting-edge solution designed for networking enthusiasts seeking reliable and high-speed data transmission. Released recently, this converter promises top-tier performance that can greatly enhance your networking capabilities.
With a maximum data transfer rate of 1000 Mbit/s, this device ensures that you will experience swift and efficient data flows, making it ideal for both personal and professional setups. It supports Gigabit Ethernet and complies with networking standards including IEEE 802.3 and IEEE 802.3ab, positioned to offer a seamless connection.
Key features include:
- Jumbo Frames Support: Speeds up data transmission with frames up to 9000 bytes.
- Auto MDI/MDI-X: Automatically adjusts settings for easy plug-and-play functionality.
- Full and Half Duplex System: Provides flexible communication options for varying network needs.
- Comprehensive LED Indicators: Monitor FDX, Power, Speed, and Status easily.
Weighing just 100 grams and constructed from durable metal, the MCT-3002BTFC-SM10 is both lightweight and robust, making it easy to integrate into your existing hardware without a hassle. Its compact dimensions (51 mm width, 74 mm depth, and 20 mm height) also make it a space-saving choice for tech setups.
This network converter operates within a wide temperature range of 0 - 50 °C and can handle humidity levels of 5 - 90%, demonstrating its resilience in varying environments. Additionally, it is fully certified under FCC Class A and CE, ensuring safety and compliance.
Whether you're setting up a home office or upgrading your business's networking infrastructure, the EFB Elektronik MCT-3002BTFC-SM10 Network Converter is the ideal choice for enhancing your communication efficiency and reliability.
Features
Network
- Maximum data transfer rate:1000 Mbit/s
- Converter input interface:1000Base-T
- Networking standards:IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
- Ethernet interface type:Gigabit Ethernet
- Ethernet LAN data rates:10,100,1000 Mbit/s
- Data transfer rate:1000 Mbit/s
- Jumbo frames support:Yes
- Jumbo frames:9000
- Auto MDI/MDI-X:Yes
- Auto-negotiation:Yes
- Duplex system:Full, Half
Performance
- Buffer size:128 KB
Features
- Internal:No
- LED indicators:FDX, Power, Speed, Status
- Product colour:Grey
- Housing material:Metal
Ports & interfaces
- Connectivity technology:Wired
- Ethernet LAN (RJ-45) ports:1
- Fiber ports quantity:2
- Fiber optic connector:SC
Power
- Input voltage:100 - 240 V
- AC input frequency:50 - 60 Hz
- Output voltage:3.3 V
- Output current:2.3 A
Weight & dimensions
- Width:51 mm
- Depth:74 mm
- Height:20 mm
- Weight:100 g
Operational conditions
- Operating temperature (T-T):0 - 50 °C
- Storage temperature (T-T):-20 - 60 °C
- Operating relative humidity (H-H):5 - 90%
- Storage relative humidity (H-H):5 - 90%
Certificates
- Certification:FCC Class A, CE
Logistics data
- Harmonized System (HS) code:85176990
