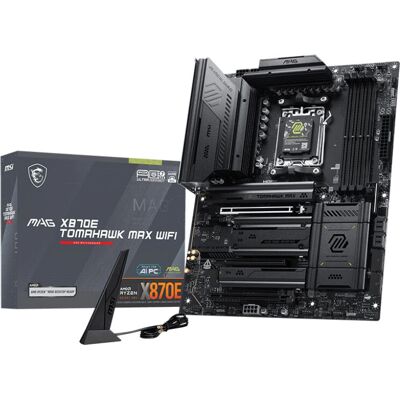

MSI MSI MAG X870E TOMAHAWK MAX WIFI Motherboard AMD X870E Socket AM5 ATX
- Supports AMD Ryzen 9000, 7000 series •
- Built-in Wi-Fi module •
- Supports DDR5 memory •
- Multiple M.2 NVMe slots •
- More features
Offers updated on: 25/6/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
International prices
Description
MSI MAG X870E TOMAHAWK MAX WIFI Motherboard brings AMD X870E power to your build with full Socket AM5 support and cutting-edge connectivity.
This ATX motherboard is designed for AMD Ryzen 7000, 8000 and 9000 Series processors on Socket AM5, offering robust power delivery and an advanced UEFI AMI BIOS with 512 Mbit memory to help you tune performance and compatibility.
Memory support is top-tier, with four DIMM slots for DDR5 dual-channel kits up to 256 GB and speeds up to 8400 MHz (unbuffered, non-ECC). This platform is ideal for high-frequency memory configurations for content creation, gaming and workstation tasks.
Storage and expansion are comprehensive: four M.2 slots (including a 22110 slot with PCIe 5.0) plus SATA III connectors for up to eight total drives and RAID support (0, 1, 10). Multiple PCIe x16 slots (Gen 3, Gen 4 and Gen 5) give you flexibility for GPUs and add-in cards.
Connectivity is a highlight, with Wi‑Fi 7 (802.11be) and Bluetooth 5.4 onboard, dual USB4 Gen 2x2 ports, multiple USB 3.2 and USB 2.0 ports, HDMI 2.1 and two DisplayPort 1.4 outputs. A 5 Gigabit Ethernet port driven by the Realtek RTL8126 completes the network picture for low-latency, high-bandwidth use.
Audio and system monitoring are well covered with 7.1-channel audio, S/PDIF output, front panel audio, extensive fan and CPU headers, and PC health monitoring for temperature, voltage and fans. The board’s black ATX design measures 243.8 x 304.8 mm and fits most standard cases.
Use cases include high-end gaming rigs with PCIe 5.0 storage and GPUs, content creation workstations needing fast DDR5 memory and many M.2 slots, and prosumer systems that demand advanced networking with Wi‑Fi 7 and 5 Gigabit Ethernet.
Key selling points are clear: Socket AM5 support for the latest Ryzen series, DDR5 up to 8400 MHz, four M.2 slots with PCIe 5.0 capability, Wi‑Fi 7 and USB4 connectivity, plus extensive expansion and RAID options for demanding builds.
- Socket AM5 for Ryzen 7000/8000/9000
- DDR5, 4 DIMMs, up to 256 GB and 8400 MHz
- Four M.2 (one 22110 PCIe 5.0) and RAID support
- Wi‑Fi 7, Bluetooth 5.4 and 5 Gigabit Ethernet
- Multiple USB4/USB 3.2/HDMI 2.1 and DisplayPort 1.4
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM5
- Compatible processor series:AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets:Socket AM5
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:4800,5600,6400,8400 MHz
- Supported memory clock speed (max):8400 MHz
- Maximum internal memory:256 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:8
- RAID support:Yes
- RAID levels:0, 1, 10
Graphics
- On-board graphics card:No
Internal I/O
- USB 2.0 connectors:4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Total number of SATA connectors:4
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- EPS power connector (8-pin):Yes
Rear panel I/O ports
- USB 2.0 ports quantity:4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- USB4 Gen 2x2 ports quantity:2
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:2
- DisplayPort version:1.4
- Microphone in:Yes
- S/PDIF out port:Yes
Network
- Ethernet LAN:Yes
- Ethernet interface type:5 Gigabit Ethernet
- LAN controller:Realtek RTL8126
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 7 (802.11be)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Bluetooth:Yes
- Bluetooth version:5.4
Features
- Motherboard chipset:AMD X870E
- Audio output channels:7.1 channels
- Product colour:Black
- PC health monitoring:CPU, Fan, Temperature, Voltage
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:AMD
Expansion slots
- PCI Express x16 (Gen 3.x) slots:1
- PCI Express x16 (Gen 4.x) slots:1
- PCI Express x16 (Gen 5.x) slots:1
- Number of M.2 (M) slots:4
- 1st M.2 largest key size:22110
- 1st M.2 highest PCI Express generation:5.0
- 2nd M.2 largest key size:2280
- 2nd M.2 highest PCI Express generation:5.0
- 3rd M.2 largest key size:2280
- 3rd M.2 highest PCI Express generation:4.0
- 4th M.2 largest key size:2280
- 4th M.2 highest PCI Express generation:4.0
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:512 Mbit
- ACPI version:6.5
- System Management BIOS (SMBIOS) version:3.7
Weight & dimensions
- Width:243.8 mm
- Depth:304.8 mm
