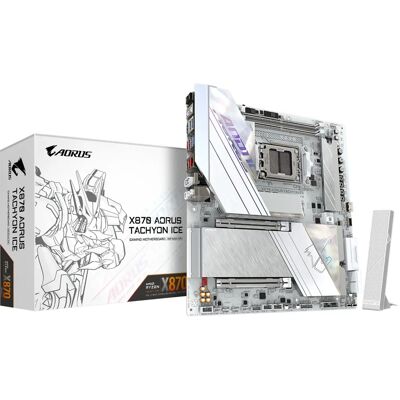

GIGABYTE X870 AORUS TACHYON ICE - Motherboard for AMD Ryzen 9000 series
- Compatible with AMD Ryzen 9000 processors •
- Digital VRM 18+2+2 phases •
- Supports DDR5 up to 9600 MHz (OC) •
- Includes PCIe 5.0 and PCIe 4.0 slots •
- More features
Offers updated on: 25/6/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
International prices
Description
GIGABYTE X870 AORUS TACHYON ICE is a high-end Extended ATX motherboard for AMD Ryzen 9000 series processors that blends extreme memory support and advanced connectivity for serious builders.
The X870 AORUS TACHYON ICE supports Socket AM5 and is compatible with AMD Ryzen 7000, 8000 and 9000 Series CPUs, making it a future-ready foundation for high-performance desktops and workstations.
Memory support is exceptional with two DIMM slots for DDR5-SDRAM in dual-channel mode, ECC and non-ECC compatibility, and official support up to an astonishing 9600 MHz and 128 GB total (up to 64 GB per slot). This makes the board ideal for memory-intensive applications such as content creation, virtualization and heavy multitasking.
Storage and expansion are comprehensive: three M.2 slots (one supporting PCIe 5.0 x4 up to 25110), additional PCIe 5.0 x16 slots, SATA III connectors and support for up to seven drives with RAID 0/1/5/10 capability for performance or redundancy. The board offers robust passive cooling and multiple headers for water pumps, fans and temperature sensors to keep components stable under load.
Connectivity is extensive and modern, featuring USB4 Gen 3x2, multiple USB 3.2 Gen2 and Gen1 Type-A and Type-C ports, dual PS/2 ports, HDMI 2.1 and DisplayPort 1.4 for integrated display options, and audio by Realtek ALC1220-VB delivering 7.1-channel sound with S/PDIF out. Networking includes onboard Wi‑Fi 7 (Realtek RTL8922AE), Bluetooth 5.4 and multi-gig Ethernet (2.5G / 5G) via a Realtek RTL8126 controller.
The board’s white aesthetic, passive cooling design and comprehensive power delivery — including dual 8-pin EPS connectors and multiple 12V and TPM headers — make it well suited for premium builds focused on performance, silence and expandability. Windows 11 x64 is supported out of the box and the UEFI AMI BIOS with 512 Mbit memory provides advanced tuning options.
Typical use cases include high-refresh gaming rigs with dual Gen5 GPUs, content creation workstations that demand fast DDR5 memory and multiple NVMe drives, and enthusiast overclocking or silent water-cooled builds. The GIGABYTE X870 AORUS TACHYON ICE places key selling points such as extreme memory speeds, PCIe 5.0 storage, Wi‑Fi 7, and multi-gig networking front and center for customers seeking a top-tier AM5 platform.
- Socket AM5 for AMD Ryzen 7000/8000/9000 Series
- DDR5 up to 9600 MHz, 2 DIMMs, 128 GB max
- PCIe 5.0 x16 slots, 3x M.2 (one PCIe 5.0), RAID support
- Wi‑Fi 7, Bluetooth 5.4, 2.5G/5G Ethernet
- 7.1 Realtek ALC1220-VB audio, HDMI 2.1, USB4 Gen3x2
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM5
- Compatible processor series:AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets:Socket AM5
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:2
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Supported memory clock speeds:9600,9200,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
- Supported memory clock speed (max):9600 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
- Maximum internal memory per slot:64 GB
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:7
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
- Maximum resolution:4096 x 2160 pixels
- HDCP:Yes
- DirectX version:12.0
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2x2 connectors:1
- Number of SATA III connectors:2
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of CPU fan connectors:2
- Number of chassis fan connectors:6
- EPS power connector (8-pin):Yes
- Number of EPS power connectors (8-pin):2
- TPM connector:Yes
- 12V power connector:Yes
- Number of water pump connectors:3
- Number of temperature sensor headers:2
- Number of noise detection headers:1
- RGB LED pin header:Yes
- Number of RGB LED pin headers:4
Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- USB4 Gen 3x2 ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- PS/2 ports quantity:2
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPort version:1.4
- Headphone outputs:1
- Line-in:Yes
- S/PDIF out port:Yes
- Digital audio optical out:1
- WiFi-AP antenna jack:2
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- LAN controller:Realtek RTL8126
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 7 (802.11be)
- Wi-Fi standards:Wi-Fi 7 (802.11be)
- WLAN controller model:Realtek RTL8922AE
- Bluetooth:Yes
- Bluetooth version:5.4
Features
- Motherboard chipset:AMD X870
- Audio chip:Realtek ALC1220-VB
- Audio output channels:7.1 channels
- Product colour:White
- PC health monitoring:Fan, Temperature, Voltage, Water cooling
- Component for:PC
- Motherboard form factor:Extended ATX
- Motherboard chipset family:AMD
- Cooling type:Passive
- Power source type:ATX
- Windows operating systems supported:Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 5.x) slots:2
- Number of M.2 (M) slots:3
- 1st M.2 largest key size:25110
- 1st M.2 highest PCI Express generation:5.0
- 2nd M.2 largest key size:22110
- 2nd M.2 highest PCI Express generation:4.0
- 3rd M.2 largest key size:22110
- 3rd M.2 highest PCI Express generation:4.0
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:512 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:Taiwan
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:400 mm
- Package depth:335 mm
- Package height:430 mm
- Package weight:3.91 kg
Weight & dimensions
- Width:305 mm
- Depth:275 mm
- Height:35 mm
Packaging content
- Batteries included:Yes
- Antenna included:Yes
- Screws included:Yes
- Bundled software:Norton® Internet Security (OEM version)
Other features
- Weight:3.32 kg
Technical details
- Warranty period:3 year(s)
