ASUS ProArt X870E-CREATOR WIFI - Motherboard with AMD Socket AM5, DDR5, Wi-Fi
- Supports AMD Socket AM5 •
- DDR5 RAM up to 192 GB •
- Wi-Fi connectivity •
- More features
Offers updated on: 3/7/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
International prices
Description

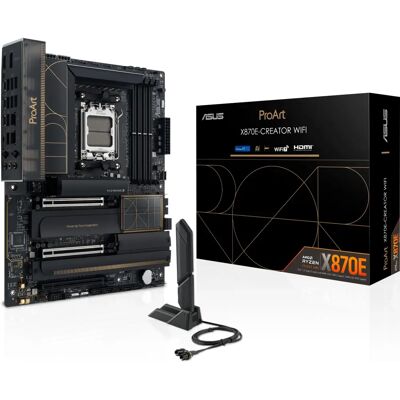

ASUS ProArt X870E-CREATOR WIFI is a high-end ATX motherboard designed for AMD Socket AM5 systems, offering creators and professionals a platform released with AMD's latest AM5 ecosystem in mind.
This ProArt motherboard supports DDR5-SDRAM across four DIMM slots in a dual-channel configuration, with ECC and non-ECC compatibility and up to 192 GB of unbuffered memory capacity, ensuring ample headroom for memory-intensive creative workloads.
Storage flexibility is extensive, with four M.2 slots plus SATA III support for up to eight drives in total and RAID support (0, 1, 10, 5), enabling both high-performance NVMe arrays and large-capacity HDD/SSD combinations for media libraries and backups.
Connectivity is a standout: dual 2.5 Gb and 10 Gb Ethernet ports, Wi‑Fi 7 (802.11be) with external antenna jack and Bluetooth 5.4, plus abundant USB options including multiple USB 3.2 Gen 2 Type-A ports, USB 3.2 Gen 2x2 Type-C and USB4 Gen 2x2 ports. This makes the ProArt X870E-CREATOR WIFI ideal for fast file transfers, streaming, and multi-device setups.
Expansion and integration are supported with two PCIe Gen5 x16 slots and one Gen4 x16 slot, four M.2 sockets, a Realtek S1220A audio codec delivering 7.1-channel sound, and a UEFI AMI BIOS with a 256 Mbit ROM and Clear CMOS button for easy tuning and recovery.
The board provides robust system management with five chassis fan headers, CPU fan connector, multiple power connectors including 24-pin ATX and 12V, front-panel audio, COM and chassis intrusion connectors, plus included DisplayPort and SATA cables for a faster build process.
Typical use cases include content creation workstations, multicam streaming rigs, software development environments, and high-throughput media servers where fast networking (10 GbE), PCIe Gen5 expansion, and high memory capacity accelerate productivity.
- Socket AM5 support for latest AMD CPUs
- DDR5, up to 192 GB with ECC support
- Wi‑Fi 7, Bluetooth 5.4 and dual 10 GbE networking
- Four M.2 slots and RAID 0/1/5/10
- PCIe Gen5 expansion and professional audio (7.1)
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM5
- Supported processor sockets:Socket AM5
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Maximum internal memory:192 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:8
- RAID support:Yes
- RAID levels:0, 1, 10, 5
Graphics
- Parallel processing technology support:Not supported
Internal I/O
- USB 2.0 connectors:3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2x2 connectors:1
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:5
- Chassis intrusion connector:Yes
- Number of COM connectors:1
- 12V power connector:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:7
- USB 3.2 Gen 2x2 Type-C ports quantity:1
- USB4 Gen 2x2 ports quantity:2
- Ethernet LAN (RJ-45) ports:2
- HDMI ports quantity:1
- DisplayPorts quantity:1
- Microphone in:Yes
- WiFi-AP antenna jack:1
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet, 10 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 7 (802.11be)
- Wi-Fi standards:Wi-Fi 7 (802.11be)
- Bluetooth:Yes
- Bluetooth version:5.4
Features
- Motherboard chipset:AMD X870E
- Audio chip:Realtek S1220A
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:AMD
- Windows operating systems supported:Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots:1
- PCI Express x16 (Gen 5.x) slots:2
- Number of M.2 (M) slots:4
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
- Clear CMOS button:Yes
Weight & dimensions
- Width:305 mm
- Depth:244 mm
Packaging content
- Cables included:DisplayPort, SATA
